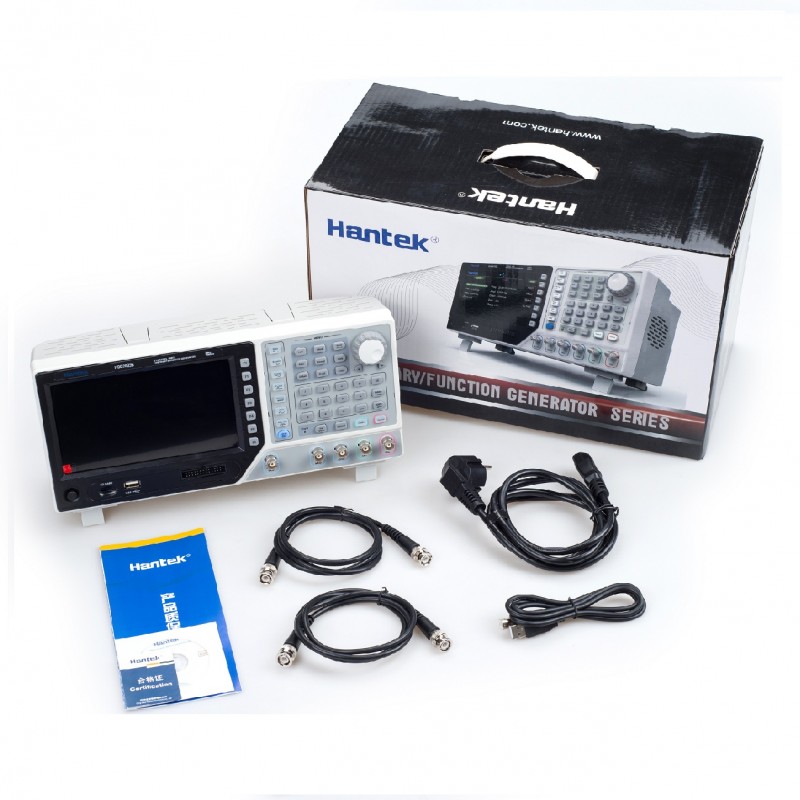

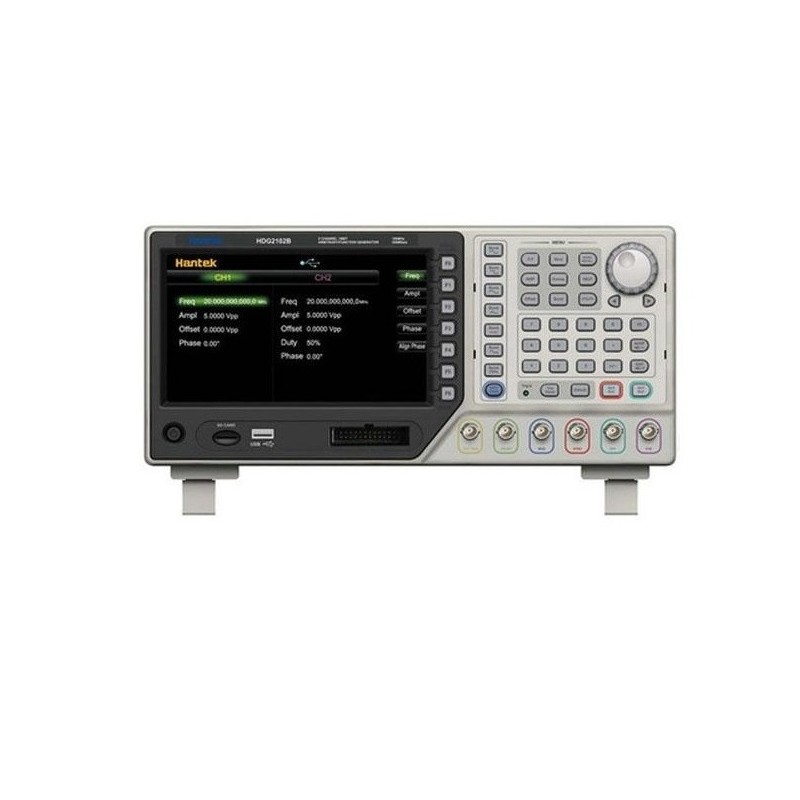

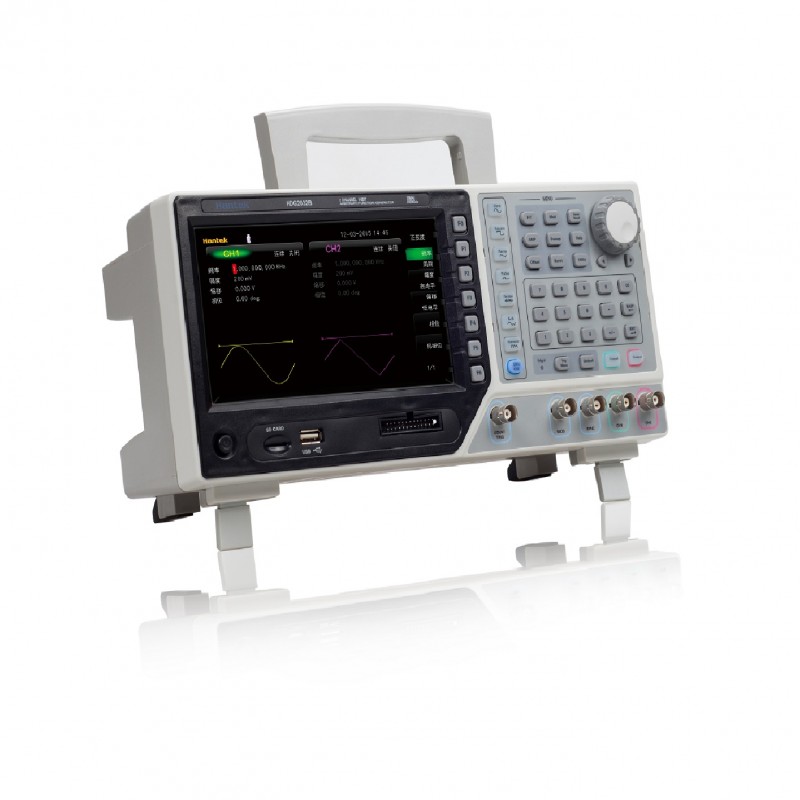

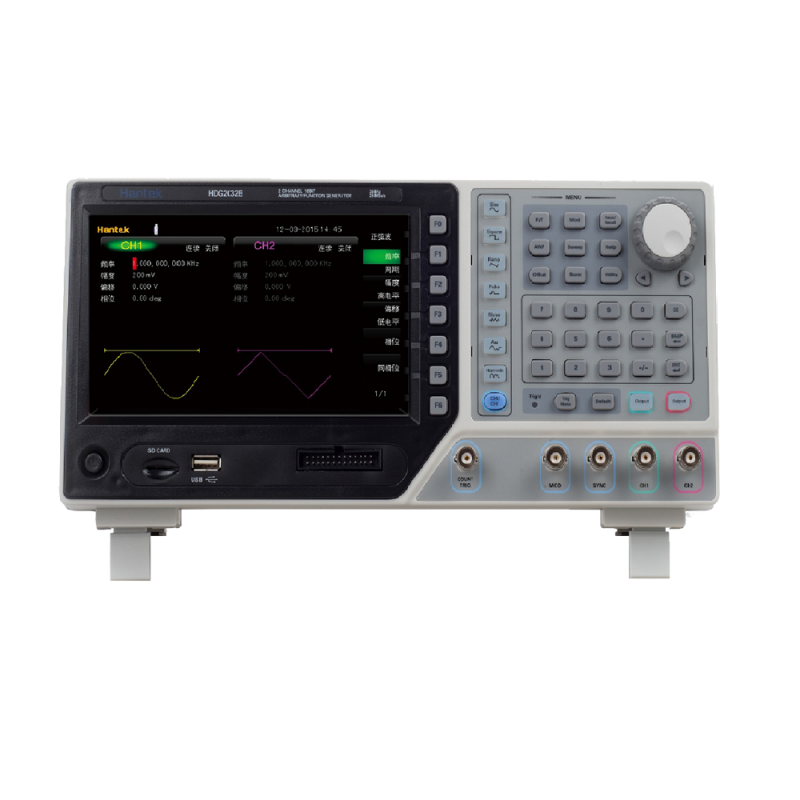

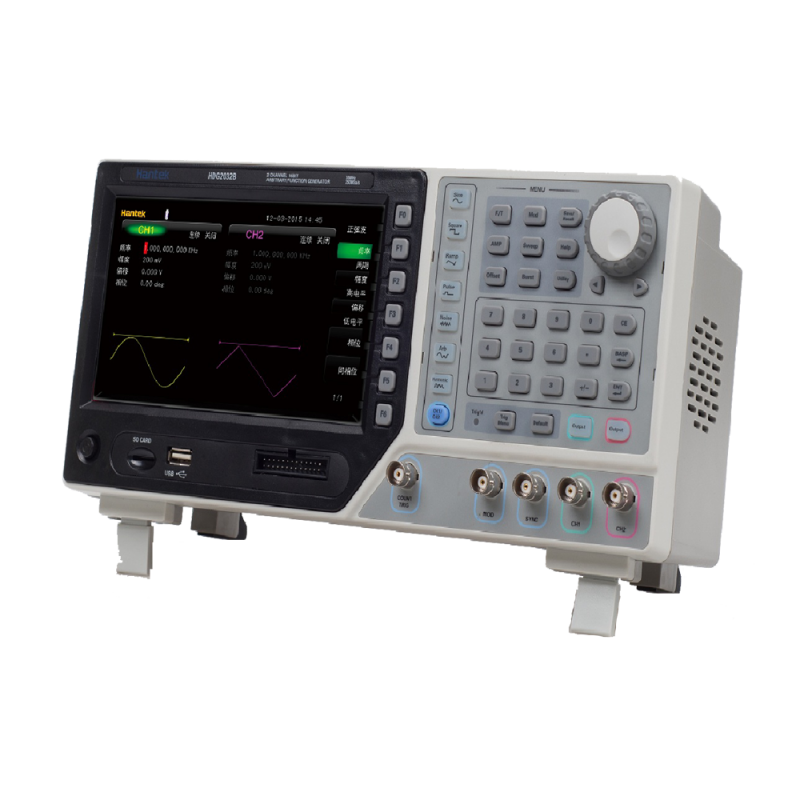

Générateur de signaux arbitraires / Fonctions Hantek HDG2012B
1,530.000 TND TTC
Résolution 16 bits, taux d’échantillonnage 250MSa/s ; profondeur de mémoire 64M ; sortie numérique 16 canaux, écran TFT 7 pouces, 64K couleurs réelles, WVGA(800X480)
- Résolution 16 bits, Taux d’échantillonnage 250 MSa/s ; Profondeur de mémoire 64 M.
- Fréquence de sortie sinusoïdale : 100/80/60/30 MHz.
- 16 canaux de sortie numérique, qui, associés au canal analogique, peuvent reconstituer les signaux plus complexes rencontrés dans la pratique quotidienne.
- Supporte les modulations AM, FM, PM, ASK, FSK, PSK et PWM.
- Base de temps TCXO standard, OCXO en option pour une stabilité ultra-élevée.
- Écran TFT couleur 64K de 7 pouces, WVGA (800×480).
- Nombreuses interfaces : Hôte USB, Périphérique USB, LAN.
- Compteur de fréquence 80 MHz.
- Cet appareil fonctionne sous Linux, pour plus de détails, voir…
En stock
2
personnes qui regardent ce produit maintenant !
La description
Générateur de signaux arbitraires / Fonctions Hantek HDG2012B
- 16Bit Resolution, 250MSa/s Sample Rate; 64M Memory Depth.
- 100MHz Max. Sine Output Frenquency.
- 16 channels digital output, together with the analog channel can rebuild the more mixed signals in daily practice.
- Support AM, FM, PM, ASK, FSK, PSK and PWM modulations.
- TCXO timebase standard, OCXO optional for ultra-high stability.
- 7 inch, 64K true color TFT display, WVGA(800X480).
- Plenty of interfaces: USB Host, USB Device, LAN.
- 80M Frequency Counter.
| Model | HDG2102B | HDG2082B | HDG2062B | HDG2032B | HDG2022B | HDG2012B | HDG2002B |
| Main Features | |||||||
| Channel | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Memory Depth | 64M | 64M | 64M | 64M | 64M | 64M | 64M |
| Frenquency | 100MHz | 80MHz | 60MHz | 30MHz | 20MHz | 10MHz | 5MHz |
| Sample Rate | 250MSa/s | ||||||
| Voltage Resolution | 16Bit | ||||||
| Digital Output | 16 Channels output | ||||||
| Frenquency Characteristic | |||||||
| Standard Waveforms | Sine, Square, Ramp, Pulse, Noise, Sinc, Exponential Rise, Exponential Fall, ECG, Gauss, Haver Sine, Lorentz, Dual-Tone, DC | ||||||
| Sine | 1uHz~Max. | ||||||
| Square | 1uHz~30MHz | 1uHz~Max. | |||||
| Pluse | 1uHz~15MHz | 1uHz~Max. | |||||
| Ramp/Triangle | 1uHz~4MHz | 1uHz~3MHz. | |||||
| White Noise | 1uHz~Max. | ||||||
| Arb. | 1uHz~20MHz | 1uHz~20MHz | 1uHz~20MHz | 1uHz~20MHz | 1uHz~15MHz | 1uHz~10MHz | 1uHz~5MHz |
| Resolution | 1uHz | ||||||
| Accuracy | ±50ppm, 18~28℃ | ||||||
| Sine Wave Spectrum Purity | |||||||
| Harmonic Distortion | Typical（0dBm）DC-1MHz: <-60dBc; 1MHz-10MHz: <-55dBc; 10MHz-100MHz: <-50dbc td= » »> | ||||||
| Total Harmonic Distortion | <0.1% (10Hz-20kHz, 0dBm) | ||||||
| Spurious signal | Typical(0dBm):≤10MHz: <-65dBc; | ||||||
| (non-hormonic) | >10MHz <-65dBc+6dB/spectrum phase | ||||||
| Phase Noise | Typical(0dBm,10kHz offset,) 10MHz: ≤-115dBc/Hz | ||||||
| Square | |||||||
| Rise/Down time | <10ns td= » »> | <11ns td= » »> | <12ns td= » »> | <14ns td= » »> | <16ns td= » »> | <18ns td= » »> | <18ns td= » »> |
| Overshoot | <3%(100KHz, 1Vpp) | ||||||
| Duty Cycle | ≤10MHz: 20.0%~80.0%; | 8.0%~92.0% | |||||
| 10MHz~40MHz: 40.0%~60.0%; | |||||||
| >40MHz: 50.0% | |||||||
| Non-symmetry | 1% of period+5ns | ||||||
| Jitter（rms） | Typical（1MHz,1Vpp, 50Ω）≤5MHz: 2ppm+500ps; > 5MHz: 500ps | ||||||
| Ramp | |||||||
| Linearity | ≤1%(1KHz, 1Vpp) | ||||||
| Symmetry | 0%~100% | ||||||
| Pluse | |||||||
| Period | 33.33ns~1Ms | 40ns~1Ms | 40ns~1Ms | 50ns~1Ms | 50ns~1Ms | 100ns~1Ms | 200ns~1Ms |
| Pulse | ≥12ns | ≥14ns | ≥14ns | ≥16ns | ≥16ns | ≥18ns | ≥18ns |
| Leading Edge Time | ≥8ns | ≥9ns | ≥10ns | ≥10ns | ≥11ns | ≥11ns | ≥12ns |
| Overshoot | <3%(1VPP) | ||||||
| Jitter（rms） | Typical（1MHz, 1Vpp, 50Ω） | ||||||
| ≤5MHz 2ppm+500ps | |||||||
| > 5MHz 500ps | |||||||
| Arb. Wavefrom Generator | |||||||
| Waveform Length | 64M Point | ||||||
| Vertical Resolution | 16 Bit | ||||||
| Sample Rate | 250MSa/s | ||||||
| Rise/Fall time | Typical(1Vpp):<6ns td= » »> | ||||||
| Jitter | Typical（1MHz, 1Vpp, 50Ω） | ||||||
| ≤5MHz 2ppm+500ps; | |||||||
| > 5MHz 500ps | |||||||
| Amplitude characteristic | |||||||
| Amplitude Range | ≤20MHz:2mVpp – 20Vpp;≤60MHz:2mVpp -15Vpp;≤80MHz:2mVpp -10Vpp; | ||||||
| ≤90MHz:2mVpp – 5Vpp;≤100MHz:2mVpp – 2Vpp | |||||||
| Accuracy | Typical（1kHz Sine, 0V deviation, >10mVpp, Auto); ±1% of setting ±2mVpp | ||||||
| Amplitude Flatness | ≤10MHz:±0.1dB;≤60MHz:±0.2dB;≤100MHz:±0.4dB | ||||||
| Resolution | 1mv or 4 digits | ||||||
| Impedance | 50Ω | ||||||
| Offset Characteristic | |||||||
| Range | |Voffset| < Vmax – Vpp/2 | ||||||
| Accuracy | ±(1% of setting + 5mV + 0.5% of amplitude） | ||||||
| Modulation Characteristic | |||||||
| Modulation Type | AM, FM,PM,2ASK,2FSK,2PSK,PWM | ||||||
| AM | |||||||
| Carrier Waveforms | Sine, Square, Ramp, Arb. (except DC) | ||||||
| Source | Internal/External | ||||||
| Modulating Waveforms | Sine, Square, Ramp, Noise, Arb | ||||||
| Frequency | 1Hz~500KHz | ||||||
| Depth | 0%~120% | ||||||
| FM | |||||||
| Carrier Waveforms | Sine, Square, Ramp, Arb. (except DC) | ||||||
| Source | Internal/External | ||||||
| Modulating Waveforms | Sine, Square, Ramp, Noise, Arb | ||||||
| Frequency | 1Hz~500KHz | ||||||
| Frequency Deviation | 0~360 | ||||||
| PM | |||||||
| Carrier Waveforms | Sine, Square, Ramp, Arb. (except DC) | ||||||
| Source | Internal/External | ||||||
| Modulating Waveforms | Sine, Square, Ramp, Noise, Arb | ||||||
| Frequency | 1Hz~500KHz | ||||||
| Frequency Deviation | 0%~120% | ||||||
| 2ASK | |||||||
| Carrier Waveforms | Sine, Square, Ramp, Arb. (except DC) | ||||||
| Source | Internal/External | ||||||
| Modulating Waveforms | Square of 50% duty cycle | ||||||
| Code Rate | 1Hz~500KHz | ||||||
| 2FSK | |||||||
| Carrier Waveforms | Sine, Square, Ramp, Arb. (except DC) | ||||||
| Source | Internal/External | ||||||
| Modulating Waveforms | Square of 50% duty cycle | ||||||
| Code Rate | 1Hz~500KHz | ||||||
| 2PSK | |||||||
| Carrier Waveforms | Sine, Square, Ramp, Arb. (except DC) | ||||||
| Source | Internal/External | ||||||
| Modulating Waveforms | Square of 50% duty cycle | ||||||
| Code Rate | 1Hz~500KHz | ||||||
| PWM | |||||||
| Carrier Waveforms | Sine, Square, Ramp, Arb. (except DC) | ||||||
| Source | Internal/External | ||||||
| Modulating Waveforms | Sine, Square, Ramp, Noise, Arb. | ||||||
| Code Rate | 1Hz~500KHz | ||||||
| Width Deviation | 0% to 100% of Pulse Width | ||||||
| Burst Characteristic | |||||||
| Burst Count | 1~2000000000 | ||||||
| Gated Source | External trigger | ||||||
| Trigger Source | Internal, External or Manual | ||||||
| Sweep Characteristics | |||||||
| Type | linear | ||||||
| TypeDirection | Up | ||||||
| Sweep time | 280 000s | ||||||
| Hold/Return time | 280 000s | ||||||
| Trigger Source | Internal, External, Manual | ||||||
| Mark | Falling Edge of Sync signal(programmable) | ||||||
| General Specifications | |||||||
| Interface | USB host, USB Device, LAN optional | ||||||
| Display | 7’’ 64K Color TFT Display, 800*480 | ||||||
| Power Voltage | 100-120VACRMS(±10%), 45Hz to 440Hz, CATⅡ; 120-240VACRMS(±10%), 45Hz to 66Hz, CATⅡ | ||||||
| Power Consumption | <60w td= » »> | ||||||
| Output Current | 0.15A | ||||||
| Size | 305mm x 100mm x 130mm(L x W x H) | ||||||
| Weight | 3KG | ||||||
