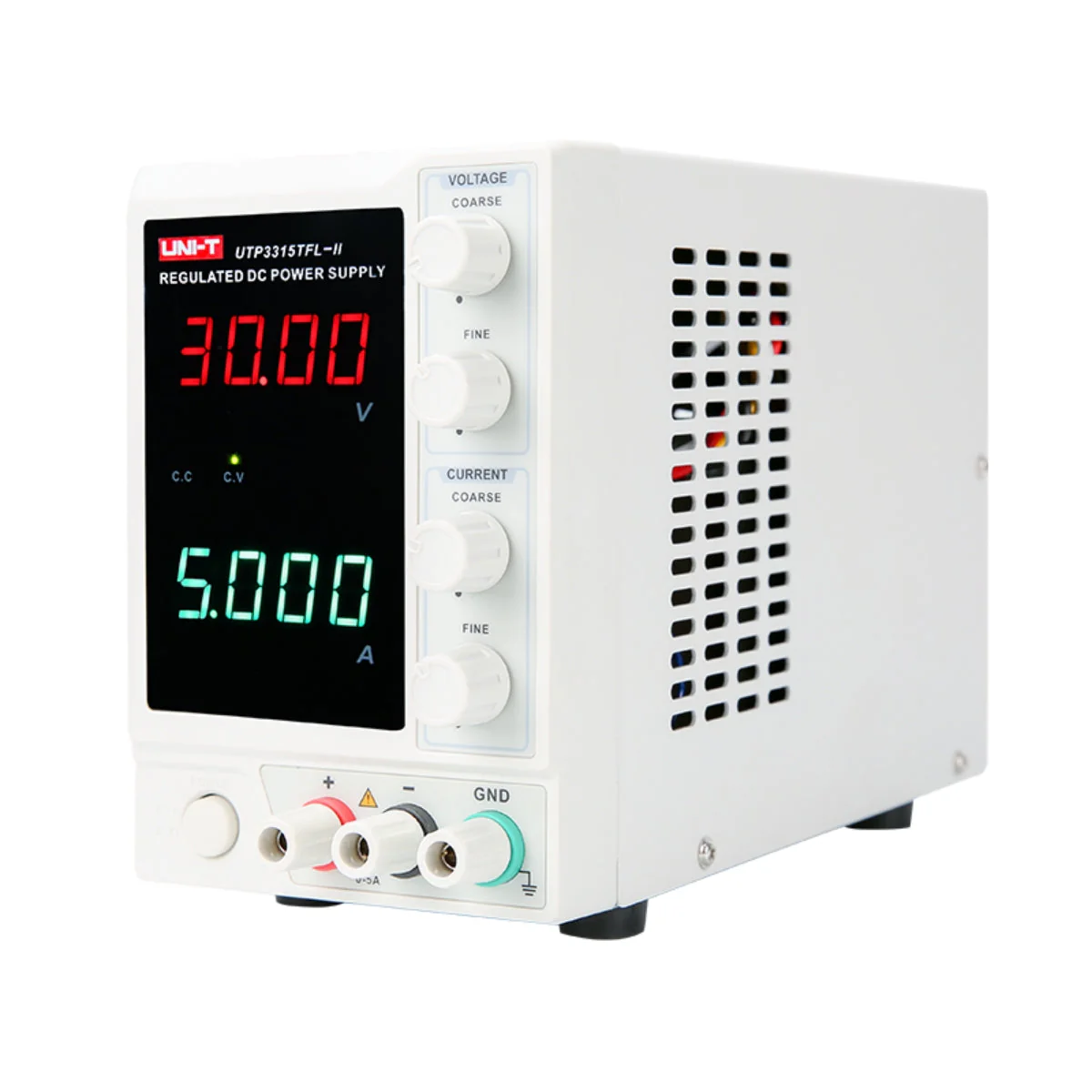

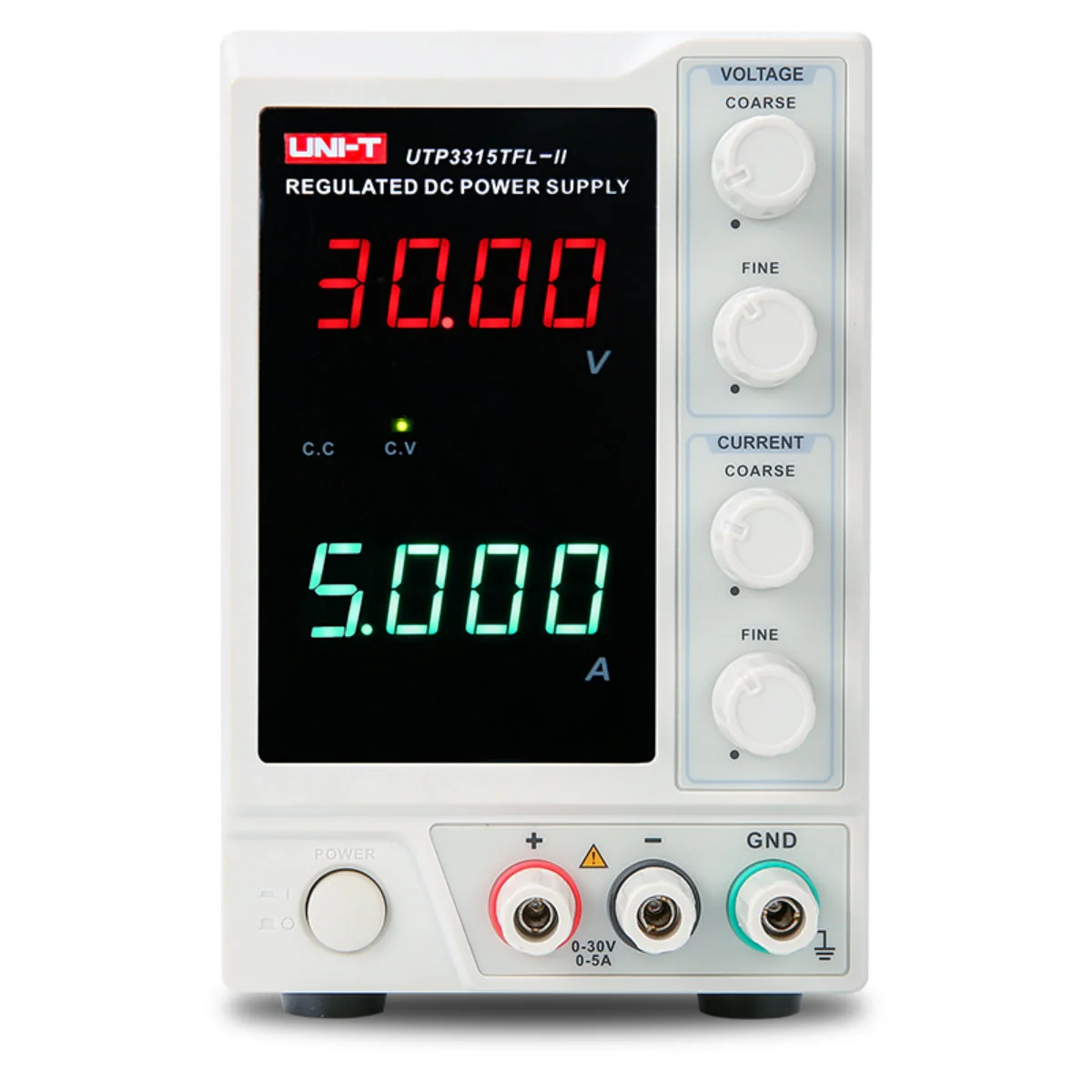

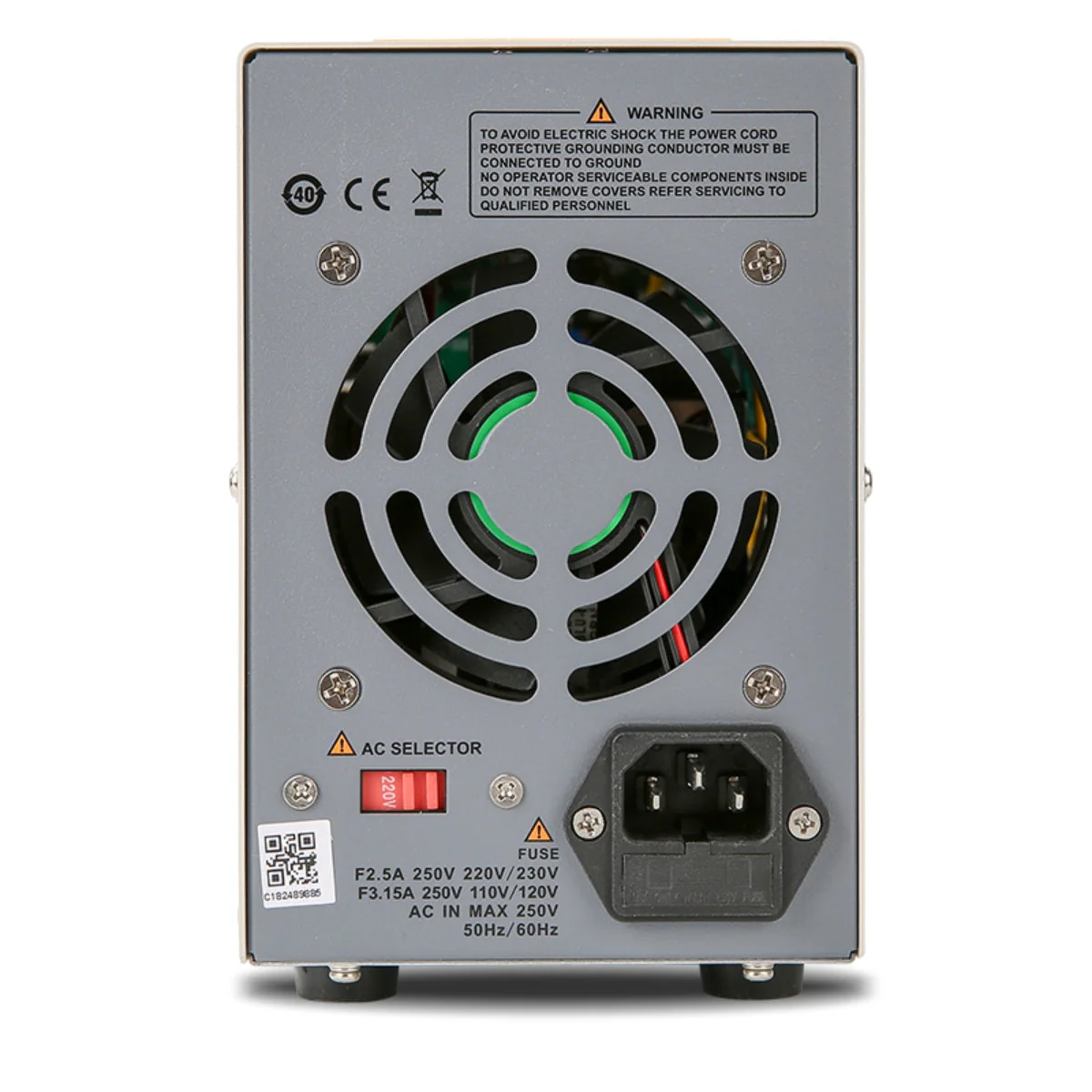

Alimentation Stabilisée UNI-T UTP3315TFL-II
- Canaux : 1
- Type : alimentation DC linéaire
- PUISSANCE TOTALE : 150W
- TENSION DE SORTIE : 30V
- COURANT DE SORTIE : 5A
- RÉSOLUTION : 10mV/1mA
- PRECISION DE REGLAGE :
- Tension:＜0.01%＋3mV
- Courant:≤0.1%+3mA
|
Model
|
UTP3315TFL-II
|
||
|
Output voltage
|
0-30V
|
||
|
Output current
|
0- 5A
|
||
|
Output power
|
150W
|
||
|
Load regulation
|
CVs0.01%+5mV, CCs
0.1%+ 10mA
|
||
|
Programming accuracy
|
Voltage
|
< 0.5%+20mV
|
|
| Current |
< 0.5%+10mA
|
||
|
Ripple and noise
|
2mVrms
|
||
|
Output regulate resolution
|
CV: 10mV (typical), CC: 1mA (typical)
|
||
|
Reliability
|
MTBF(e): * 2000hrs
|
||
|
Display mode
|
LED voltage and current dual display
|
||
|
General Characteristic
|
|||
|
Power
|
Input voltage: 110V/220V+ 5% AC, Frequency: 50Hz/60Hz
|
||
|
Product net weight Product
|
4Kg
|
||
|
size (Wx H x D)
|
105mm x 165mm x 249mm
|
||
|
Standard quantity per carton
|
4pcs
|
||
|
Standard carton size Standard
|
330mm x 285mm x 460mm
|
||
|
carton gross weight
|
17Kg
|
||
|
Ordering Information
|
|||
|
Standard Accessories
|
International standard power cord
|
||
|
Test output line
|
|||
